      Charging for Communal, Residential & Commercial Parking

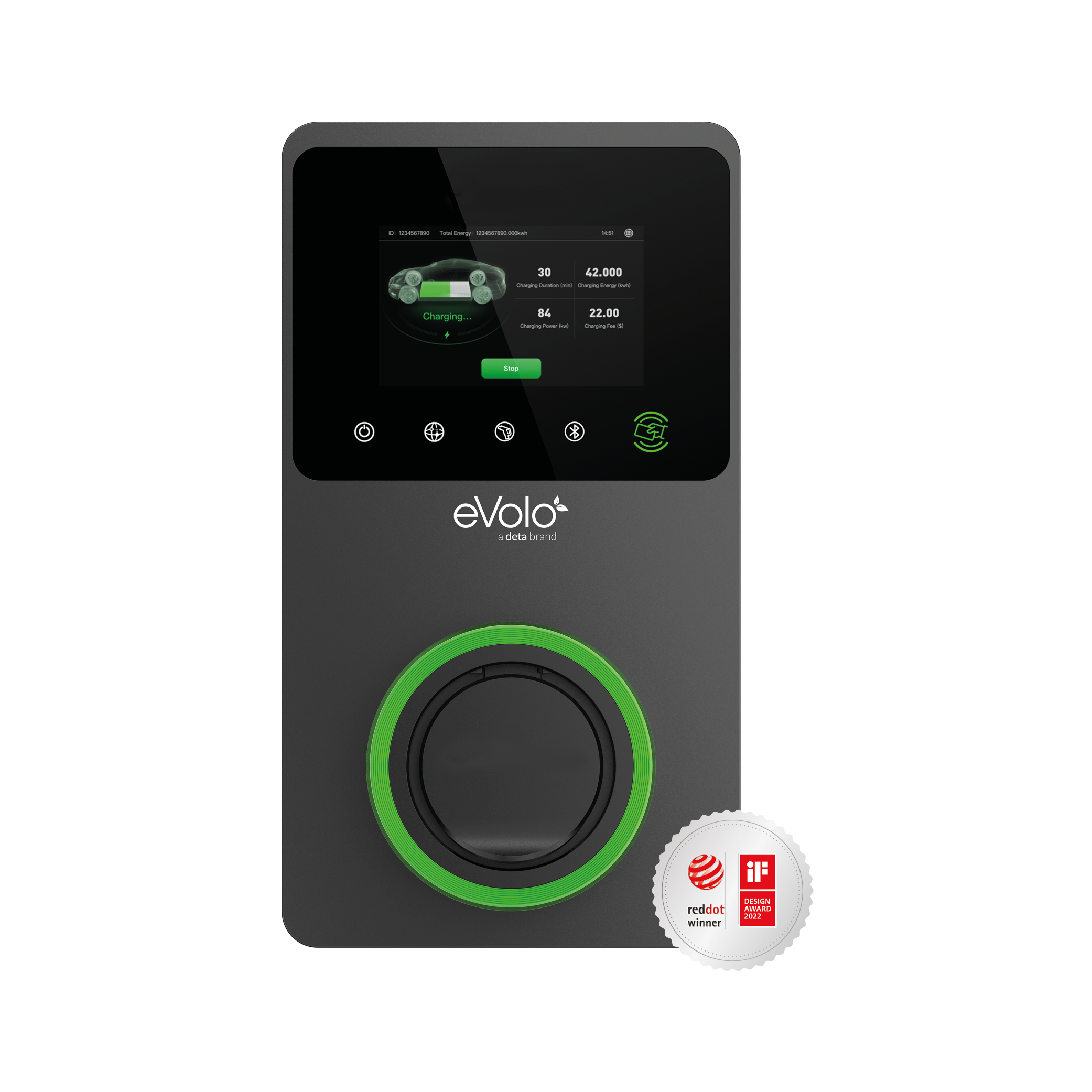

      The award winning eVoomXT is a multi-user smart charge point designed for communal residential and commercial EV charging (workplace, retail parks).

      Designed with an integrated touchscreen, its modular design simplifies installation and maintenance. A cooling functionality means that at full power, the temperature is 10°c lower than the industry average, extending its life by more than eight years.

      Incorporating triple protection technology for safe charging and available to suit single phase (7.4KW) or three phase (11KW/22KW) options, users can access the smart charge point via the app (free to download) or RFID card. Optional cloud based software allows communal parking areas to be managed by a Charge Point Operator (CPO), who is then in control of operating and maintaining the EV charging facility and billing the users.

      The eVoomXT is a winner of both the Red Dot Design Award (2022) and iF Design Award (2022).

      View Brochure

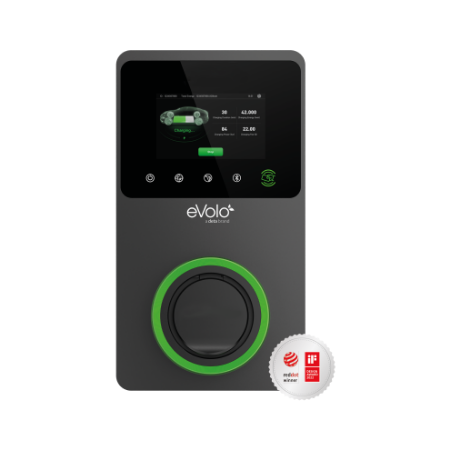

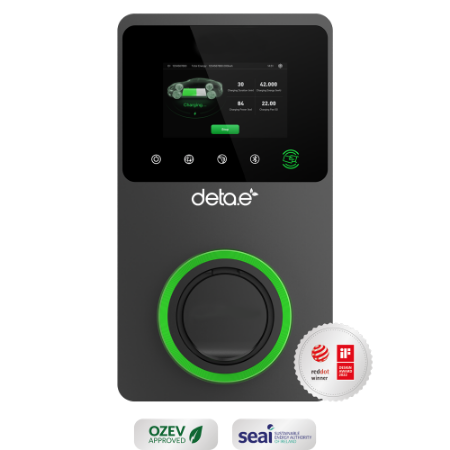

      Picture for category Communal Charge Point
      icon

      Easy Install

      Easy Installation

      icon

      Powerful

      The eVoomXT can support up to 7.4KW 32A on single phase or 22KW 32A on three phase and has an untethered Type 2 connector

      icon

      Reliable

      Supported by a full 5-year parts & labour warranty

      icon

      PEN Protection

      Provides loss of earth protection, eliminating the time, cost and disruption for an earth rod to be installed

      icon

      Versatile

      Suitable for inside or outside mounting

      Innovative Technology for Long Life, Phase Balancing & Cloud Based Management

      Packed with triple protection technology for safe charging, the eVoomXT features optional intelligent battery diagnostics for longer life. Load management and phase balancing options are available so the maximum number of vehicles can be charged simultaneously.



      Available to suit single phase (7.4KW) or three phase (11KW/22KW) options, users can access the smart charge points via the app (free to download) or RFID card.
      The CPO can access the Deta eVolo cloud based management solution to oversee status and provide billing as required. Incorporating the OCPP 1.6J operating
      system allows third party apps and management solutions such as Monta and Fuse to be used where preferred.

      View as Grid List
      Sort by
      Display per page

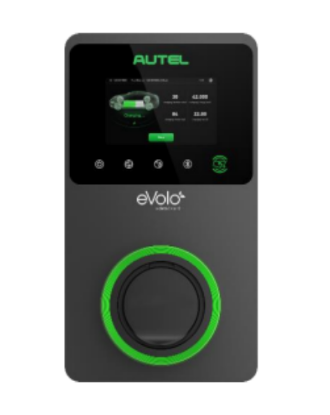

      eVoomXT

      communal

      ➢ Integrated 30mA AC & 6mA DC RCD Protection
      ➢ Built in Open PEN Fault Protection
      ➢ RFID Enabled
      ➢ 4G, Wi-Fi, Ethernet and Bluetooth Connectivity
      ➢ Over-the-Air Firmware Updates
      ➢ Scheduled & Energy Tariff Charging Options
      ➢ Safe Electrical Load Management
      ➢ OCPP 1.6J compliant for Remote Management & Control
      ➢ 5-Year Warranty

      Product Specifications Data Sheet

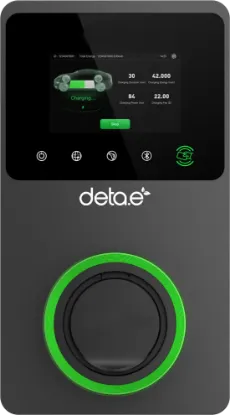

      eVoomXL

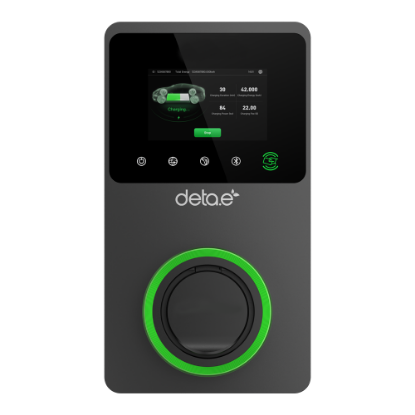

      Picture of eVoomXL
      Picture of eVoomXL
      Picture of eVoomXL
      Picture of eVoomXL
      • 7.4kW Single Phase / 11kW/22kW Three Phase
      • Integrated 30mA AC & 6mA DC Earth Fault Protection
      • Built in Open PEN Fault Protection RFID Enabled (Supplied With 2 Cards)
      • LCD Screen Allows Operation via the Screen
      • Customisation of LCD Screen Display for Images/Adverts
      • 4G, Wi-Fi, Ethernet and Bluetooth Connectivity
      • Over-the-Air Firmware Updates
      • Scheduled & Energy Tariff Charging Options
      • Safe Electrical Load Management
      • OCPP 1.6J Compliant for Remote Management & Control
      • 3-Year Warranty
      Product Specifications Data Sheet
      Specifications
      Model
      eVoomXT
      Product Number
      EVC7005
      Connection Capacity
      Single Phase, 7.4kW & Three Phase , 22KW AC
      Charging Connector
      Un-tethered, IEC 62196/Type 2
      Charging Protocol
      Mode 3 (EN/IEC61851)
      AC Charging Output
      7.4kW, 32A@230V AC & 22kW, 32A@400V AC
      Input Voltage
      230V AC & 400V AC nominal
      Input Frequency
      50 Hz
      Input Current (max)
      32 A
      Energy Monitoring
      Power and energy monitoring as standard via APP & LCD display
      Overcurrent Protection
      Internal overcurrent protection
      Status Indication / HMI
      Touch Screen & Multi-colour LEDs
      Standard
      WiFi 802.11b/g/n @ 2.4GHz; Ethernet; Bluetooth; 4G; RS485
      PEN Fault Protection
      Built-in open PEN protection (detection + isolation). Can safely be installed without an earth-rod
      RCD Protection
      Integrated 30mA AC and 6mA DC RCD
      Service Fuse Protection
      Automated load management via wired CT and MID meter (available seperately)
      MID Meter
      Inbuilt +/- 1%
      Dimensions (H xWx D)
      335mm x 187mm x 85mm
      Mounting Type
      Pole/Wall mounted
      Colour
      Grey
      Unit Material
      PC
      Operating Temperature
      -40 to +55° C
      Operating Humidity
      Up to 95%RH, non-condensing
      IP Rating
      IP54, IK10
      EMC Compliance
      EN61000-6-3:2006, EN61000-6-2:2019
      Safety Compliance
      EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A2:2022
      EV Charging Compliance
      EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
      Specifications
      Model
      eVoomXL
      Product Number
      7006
      Connection Capacity
      Single Phase, 7.4kW & Three Phase, 22KW AC
      Charging Connector
      Un-tethered, IEC 62196/Type 2
      Charging Protocol
      Mode 3 (EN/IEC61851)
      AC Charging Output
      7.4kW, 32A@230V AC
      Input Voltage
      230 AC & 400V AC Nominal
      Input Frequency
      50Hz
      Input Current (max)
      32A
      Energy Monitoring
      Power and energy monitoring as standard via APP & LCD Display
      Overcurrent Protection
      Internal overcurrent protection
      Status Indication / HMI
      Touch Screen & Multi-colour LEDs
      Standard
      WiFi 802.11b/g/n @ 2.4GHz; Ethernet, Bluetooth; RS485
      PEN Fault Protection
      Built-in open PEN protection (detection + isolation), Deta EV Home can safely be installed without an earth-rod
      RCD Protection
      Integrated 30mA AC and 6mA DC RCD
      Service Fuse Protection
      Automated load management via wired CT & MID meter (available separately)
      MID Meter
      Inbuilt +/-1%
      Dimensions (H xWx D)
      335mm x 187mm x 85mm
      Mounting Type
      Pole/ Wall Mounted
      Colour
      Grey
      Unit Material
      PC
      Operating Temperature
      -40 to 55 degrees Celcius
      Operating Humidity
      Up to 95% RH, non-condensing
      IP Rating
      IP54, IK10
      EMC Compliance
      EN610000-6-3:2006, EN61000-6-2:2019
      Safety Compliance
      EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A2:2022
      EV Charging Compliance
      EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
