      Charging at Home

      The Deta.e domestic charge points are compact and smart, suitable for charging all electric and hybrid plug-in vehicles in residential single dwellings.

      Designed for quick installation and ease-of-use, these charge points offer a reliable and secure EV charging solution for the whole family. With an array of smart features, they provide up to a 7.4kW power rating, which is faster and safer than a 3-pin plug.

      Flexible and compact, the charge points can be mounted directly onto a wall or on a post in remote car parking spaces. The mounting base provides rear, front and top cable entry options with generous wiring space and easy termination. The front socket unit simply plugs into the base and 4 torq screw fixings/rubber bungs fix the socket unit to the base. The hardwired data cable, where used, simply plugs into the ethernet socket as does the RS485 comms cable communicating with the CT/energy meter where fitted for load management.

      The charge points can simply be operated via the app and is RFID ready, making it easy to switch the charger on and off and restricting access to approved users only.

      View Brochure

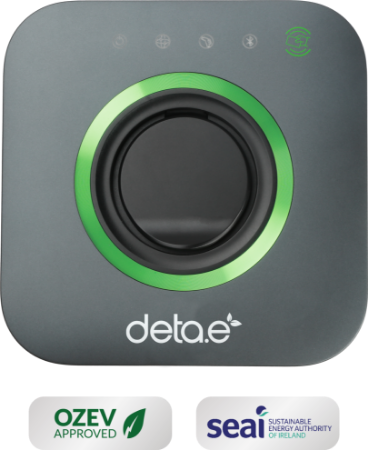

      Picture for category Domestic Charge Point
      icon

      Easy Install

      Simple, quick installation

      icon

      Smart

      Software updates available via Wi-Fi

      icon

      Safe

      Built-in safety features to ensure the charging environment is safe and secure

      icon

      PEN Protection

      Provides loss of earth protection, eliminating the time, cost and disruption for an earth rod to be installed

      icon

      Reliable

      Full 3/5 years parts and labour warranty

      Compliant with Electric Vehicles (Smart Charge Points) Regulations 2021

      The Deta.e EV charge points are ‘smart’, enabling users to send and receive information as well as respond to signals by increasing/decreasing the rate and/or timings for charging to take advantage of demand side response services.

      View as Grid List
      Sort by
      Display per page

      eDock+

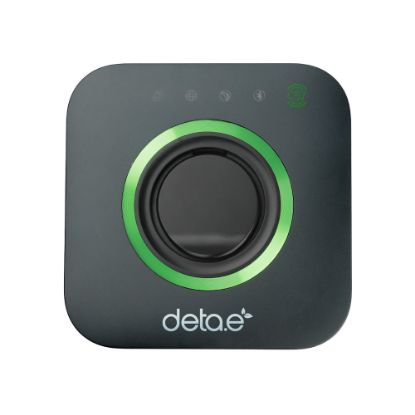

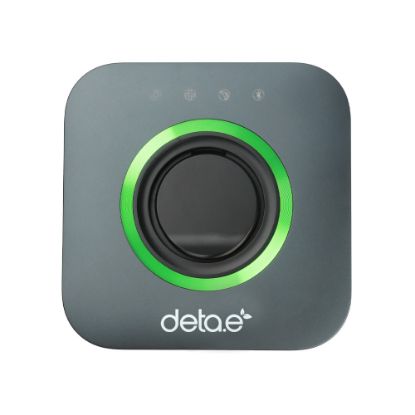

      Picture of eDock+
      Picture of eDock+
      Picture of eDock+
      Picture of eDock+



      • 7.4kW Single Phase
      • Compact Design
      • Integrated 30mA AC & 6mA DC Earth Fault Protection
      • Compatible with Solar & Battery Storage
      • Wi-Fi, Ethernet, Bluetooth & RS485 Communication
      • Auto Load Balancing Included
      • OCPP 1.6J Compliant for remote mgmt & control
      • Cyber Security/ Anti Tamper
      • Cable Lock Function (via Autel App)
      • IP54 Rated & IK10 Impact Rating
      • Built-in open PEN protection
      • 3-Year Parts & Labour Warranty (when registered within 90 days)
      Product Specifications Data Sheet
      Specifications
      Model
      eDock+
      Product Number
      EVC7002
      Connection Capacity
      Single Phase, 7.4kW AC
      Charging Connector
      Un-tethered, IEC 62196/Type 2
      Charging Protocol
      Mode 3 (EN/IEC61851)
      AC Charging Output
      7.4kW, 32A@230V AC*
      Input Voltage
      230 AC Nominal
      Input Frequency
      50 Hz
      Input Current (max)
      32A
      Energy Monitoring
      Power and energy monitoring as standard via APP
      Overcurrent Protection
      Internal overcurrent protection
      Status Indication / HMI
      Multi-colour LED's on front cover
      Standard
      WiFi 802.11b/g/n @ 2.4GHz; Ethernet, Bluetooth; RS485
      PEN Fault Protection
      Built-in open PEN protection (detection + isolation), Deta EV Home can safely be installed without an earth-rod
      RCD Protection
      Integrated 30mA AC and 6mA DC RCD
      Service Fuse Protection
      Automated load management via wired CT & MID meter (available separately)
      Dimensions (H xWx D)
      192mm x 192mm x 109mm
      Mounting Type
      Pole/ Wall Mounted
      Colour
      Black
      Unit Material
      PC
      Operating Temperature
      -30 to +50 degrees Celsius
      Operating Humidity
      Up to 95%RH, non-condensing
      IP Rating
      IP54, IK10
      EMC Compliance
      EN610000-6-3:2006, EN61000-6-2:2019
      Safety Compliance
      EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A1:2022
      EV Charging Compliance
      EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
