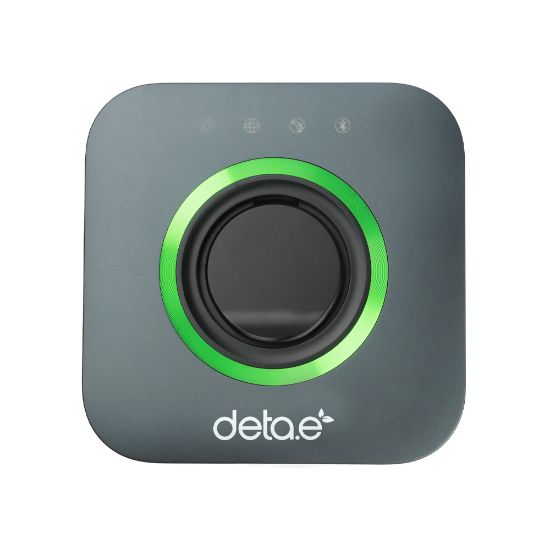

eDock - Residential
EVC7001
7.4kW Single Phase
Compact Design
Integrated 30mA AC & 6mA DC Earth Fault Protection
Compatible with Solar & Battery Storage
Wi-Fi, Ethernet, Bluetooth and RS485 Communication
Static Load Management Possible (via Autel App)
OCPP 1.6J Compliant for Remote Management & Control
Cyber Security/ Anti-Tamper Proof
Cable Lock Function (via Autel App)
IP54 Rated &
IK10 Impact Rating
3-years parts & labour Warranty (when registered within 90 days)
SKU:
EC7001
£0.00 incl VAT
Qty:
Add to cart
Add to wishlist
Product Specifications
Attribute name
Attribute value
Product Information
Model
eDock
Product Number
EVC7001
Connection Capacity
Single Phase, 7.4kW AC
Charging Connector
Un-tethered, IEC 62196/Type 2
Charging Protocol
Mode 3 (EN/IEC61851)
Communication
Status Indication / HMI
Multi-colour LED's on front cover
Standard
WiFi 802.11b/g/n/a/ac/ax @ 2.4GHz & 5.0 GHz; Ethernet, Bluetooth; RS485
Physical Properties
Dimensions (H xWx D)
192mm x 192mm x 109mm
Mounting Type
Pole or Wall Mounted
Colour
Anthracite Grey
Unit Material
Polycarbonate
Environmental Properties
Operating Temperature
-30 to 50 degrees Celcius
Operating Humidity
Up to 95% RH, non-condensing
IP Rating
IP54, IK10
Standards & Compliance
EMC Compliance
EN61000-6-3:2006, EN61000-6-2:2019
Safety Compliance
EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A1:2022
EV Charging Compliance
EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
Electrical Properties
AC Charging Output
7.4kW, 32A@230V AC*
Input Frequency
50 Hz
Input Current (max)
32A
Energy Monitoring
Power and energy monitoring as standard via APP
Overcurrent Protection
Internal overcurrent protection
Installation
PEN Fault Protection
Built-in open PEN protection (detection + isolation). Deta EVSE can safely be installed without an earth-rod
Service Fuse Protection
Static load management via app
