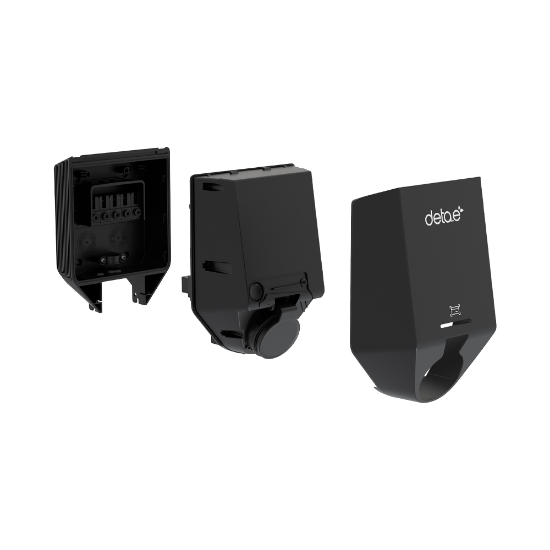

eDock2 - Commercial
EVC8007
7.4kW
Integrated 30mA AC & 6mA DC Earth Fault Protection
Co
mpatible with Solar & Battery Storage
Wi-Fi, Ethernet, Bluetooth, RS485 & 4G
Clenergy EV SIM supplied, including 12 months connection
Dynamic Load Management (CT included)
OCPP 1.6J & OCPP 2.0.1 Compliant for
Remote Management & Control
Cyber Security/Anti-Tamper Proof
Cable Lock Function (via App)
IP65 with Plug Fitted, IP55 with no Plug Fitted
IK10 Impact Rating
2-Year Warranty Extendable to 3-years Free of Charge on Registration
SKU:
EC8007
£0.00 incl VAT
Qty:
Add to cart
Add to wishlist
Product Specifications
Attribute name
Attribute value
Product Information
Model
eDock2
Product Number
EVC8007
Connection Capacity
Single Phase, 7.4kW AC
Charging Connector
Un-tethered, IEC 62196/Type 2
Charging Protocol
Mode 3 (EN/IEC61851)
Communication
Status Indication / HMI
Multi-colour LED's on front cover
Standard
WiFi 802.11b/g/n/a/ac/ax @ 2.4GHz & 5.0 GHz; Ethernet, Bluetooth; RS485 (Clenergy EV SIM supplied, including 12 months connection)
Physical Properties
Dimensions (H xWx D)
283mm x 191mm x 156mm
Mounting Type
Wall or Post Mounted
Colour
Black
Unit Material
Polycarbonate
Environmental Properties
Operating Temperature
-40 to 55 degrees Celcius
Operating Humidity
Up to 95% RH, non-condensing
IP Rating
IP65 socket, IP55 with plug inserted, IK10
Standards & Compliance
EMC Compliance
EN61000-6-3:2006, EN61000-6-2:2019
Safety Compliance
EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A1:2022
EV Charging Compliance
EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
Electrical Properties
AC Charging Output
7.4kW, 32A@230V AC*
Input Frequency
50 Hz
Input Current (max)
32A
Energy Monitoring
Power and energy monitoring as standard via APP
Overcurrent Protection
Internal overcurrent protection
Installation
PEN Fault Protection
Built-in open PEN protection (detection + isolation). Deta EVSE can safely be installed without an earth-rod
Service Fuse Protection
Dynamic load management via CT/APP
