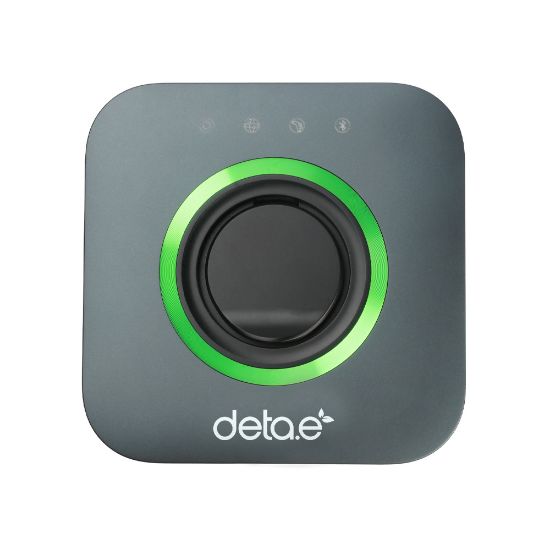

Picture of eDock
Picture of eDock
Picture of eDock

eDock



  • 7.4kW Single Phase
  • Compact Design
  • Integrated 30mA AC & 6mA DC Earth Fault Protection
  • Compatible with Solar & Battery Storage
  • Wi-Fi, Ethernet, Bluetooth & RS485 Communication
  • Static Load Management Possible (via Autel App)
  • OCPP 1.6J Compliant for Remote Management & Control
  • Cyber Security/ Anti Tamper Proof
  • Cable Lock Function (via Autel App)
  • IP54 Rated & IK10 Impact Rating
  • OZEV & Seai Approved
  • 3-Year Parts & Labour Warranty (when registered within 90 days)
Manufacturer: Commercial
£0.00
Product Specifications
Attribute name Attribute value
Product Information
Model eVoom
Test Attribute Test Value
Product Number EVC7007
Connection Capacity Single Phase, 7.4kW AC
Charging Connector Un-tethered, IEC 62196/Type 2
Charging Protocol Mode 3 (EN/IEC61851)
Communication
Status Indication / HMI Multi-colour LED’s on front cover
Standard WiFi 802.11b/g/n @ 2.4GHz; Ethernet; Bluetooth; RS485
Physical Properties
Dimensions (H xWx D) 192mm x192mm x109mm
Mounting Type Pole/Wall mounted
Colour Black
Unit Material PC
Environmental Properties
Operating Temperature -30 to +50° C
Operating Humidity Up to 95%RH, non-condensing
IP Rating IP54, IK10
Standards & Compliance
EMC Compliance EN61000-6-3:2006, EN61000-6-2:2019
Safety Compliance EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A2:2022
EV Charging Compliance EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
Electrical Properties
AC Charging Output 7.4kW, 32A@230V AC
Input Voltage 230 AC nominal
Input Frequency 50 Hz
Input Current (max) 32 A
Energy Monitoring Power and energy monitoring as standard via APP
Overcurrent Protection Internal overcurrent protection
Installation
PEN Fault Protection Built-in open PEN protection (detection + isolation). Deta EV Home can safely be installed without an earth-rod
RCD Protection Integrated 30mA AC and 6mA DC RCD
Service Fuse Protection Automated load management via wired CT and MID meter (available seperately)
